A walkthrough page that runs ZecPy through five scenes on a real chain and shows every request its light server receives.

View .md

ZecPy Live is a local web page that runs real ZecPy through five scripted scenes on a regtest chain. Beside them it shows every request the light server receives, as it arrives, recorded by two leak-audit proxies. It is the page the demo video is recorded from.

Open it in your browser: zecpy-live.pages.dev. Press Run on a scene, or Run all, to replay the recorded run with its original timing. Source: github.com/xerodahdev/zecpy-demo

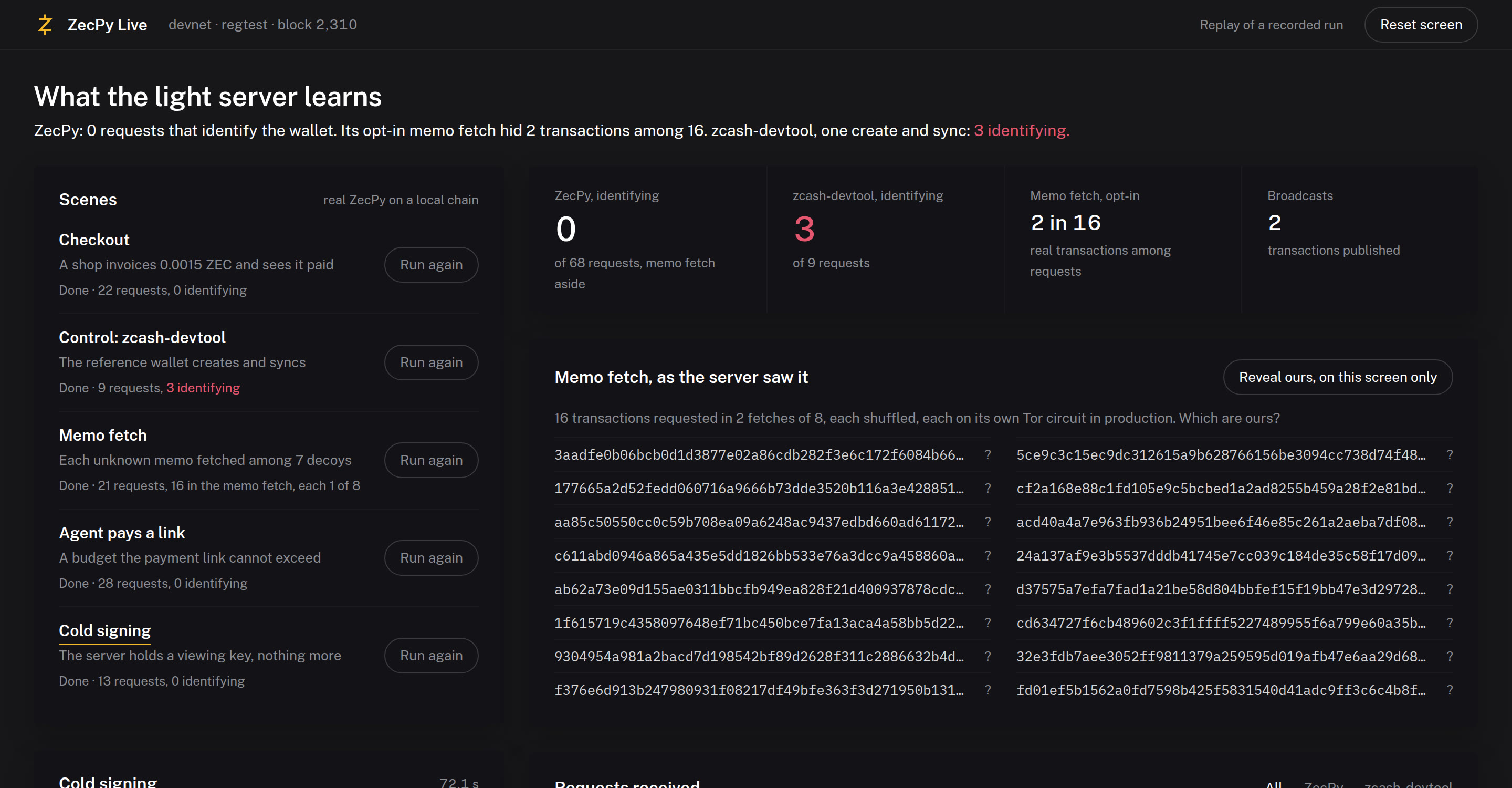

ZecPy Live after all five scenes

The five scenes

Scene What runs What the server learns
Checkout A shop wallet issues an invoice, a customer pays it, the payment confirms Nothing identifying: compact blocks, aligned tree states, one broadcast
Control: zcash-devtool The reference wallet on the same crates creates and syncs, through its own proxy Its exact birthday and its transparent addresses: 3 identifying requests in the recorded run
Memo fetch Nine payments land in one block; fetch_memos() reads the shop's memos Each real transaction requested among 7 decoys
Agent pays a link An agent reads a ZIP-321 link; pay(max_zat=100_000) is refused and max_zat=200_000 pays One broadcast; the invoice confirms on the shop's side
Cold signing A watch-only server builds and proves a PCZT; an offline signer inspects and signs it One broadcast; the server never held a spending key

All of it is real ZecPy, with real proofs and real blocks. Nothing on the page is mocked: the replay file is a recorded run of the same scenes.

Watch the recorded run

You do not need a chain to see it. Clone the demo next to the SDK and serve the replay:

Shell
git clone https://github.com/xerodahdev/zecpy-demo && cd zecpy-demo
source ../zecpy/.venv/bin/activate        # an environment with zecpy and fastapi
uvicorn demo.server:app --port 8077

Open http://127.0.0.1:8077/?replay. Add =instant to show it all at once, and &reveal to mark which memo-fetch transactions were the wallet's own. Those marks come from the wallet's records; the server received the same requests with no marks.

Run it live

With the local devnet up, the page runs every scene for real:

Shell
cd ../zecpy && devnet/up.sh "$(cat ~/.zecpy-dev/wallets/miner.addr)" && cd -
uvicorn demo.server:app --port 8077

Open http://127.0.0.1:8077 and press Run on a scene. "Reset screen" clears the page between takes. pytest -q in the demo repo runs every scene against devnet and checks its privacy claims.

Reading it fairly

  • The audit sees request content, not the network path. The proxies sit on loopback, so these runs use no Tor. In production ZecPy reaches remote servers over Tor.
  • The memo fetch is counted, not hidden. Every GetTransaction is labelled identifying, and the page shows the default path and the opt-in memo fetch as separate figures.
  • Devnet is a local chain. No testnet or mainnet funds move.
